Fertilizer Mixer/

Double-shaft Fertilizer Mixer

Brand: Shunxin
Capacity: 5-8t/h
Use: Mixing various materials
Warranty: 1 year
Color: Customizable
Material: Carbon steel Q235/Alloy
Application range: widely used in fertilizer, medicine, food, chemicals, feed, ceramics, refractory materials, such as powder, powder and glue mixture

Emailinfo@sxfertilizermachine.com
Mob & whatsapp+86 15981847286
Tel: +86 371-86582811

  • Product Details
  • Features

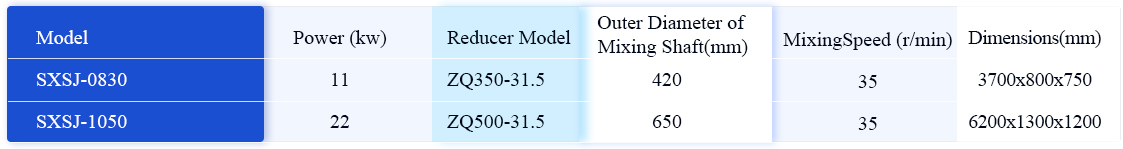

  • Parameter
  • Inquiry

The double-shaft fertilizer mixer relatively rotate by the axial blades with spiral blades, and the addition of water is used to spray the powdery materials to make the powders achieve controllable humidity. This equipment is mainly applicable to the humidification mixing of raw materials in the fertilizer industry, so that the materials are fully stirred, and it also has the conveying function.

Working Principle

When the dry powdery material is fed into the tank by the feeding nozzle, then the power transmission mechanism drives the spiral spindle rotation of the multi-group blades. By driving the passive helical shaft and the main shaft of the meshing transmission gear, the material is stirred and pushed to the tank and the wet section. After the material is pushed into the humidification section, the humidifier automatically sprays the material, and then the mixing section is fully stirred. When the material reaches the controllable humidity, it is removed from the outlet and enters the next process.

1.Dual Shaft Design: The mixer features two horizontally mounted shafts equipped with blades. These shafts rotate in opposite directions, creating a counter-rotating motion that effectively mixes the fertilizer materials.

2.High Mixing Efficiency: The counter-rotating motion of the shafts ensures thorough mixing of the fertilizer materials, resulting in a homogeneous blend with consistent composition and quality.

3.Short Mixing Time: Due to the efficient mixing action of the dual shafts, double shaft fertilizer mixers typically have short mixing times, enabling high production throughput and efficiency.
